QianLi Macaron Max is a compact, portable spot welder designed for battery repairs and small electronic devices. It offers 6 power settings, a built-in screen for easy operation, and both automatic and manual modes. The precise and safe welding system enables effective repairs with minimal risk of damage.

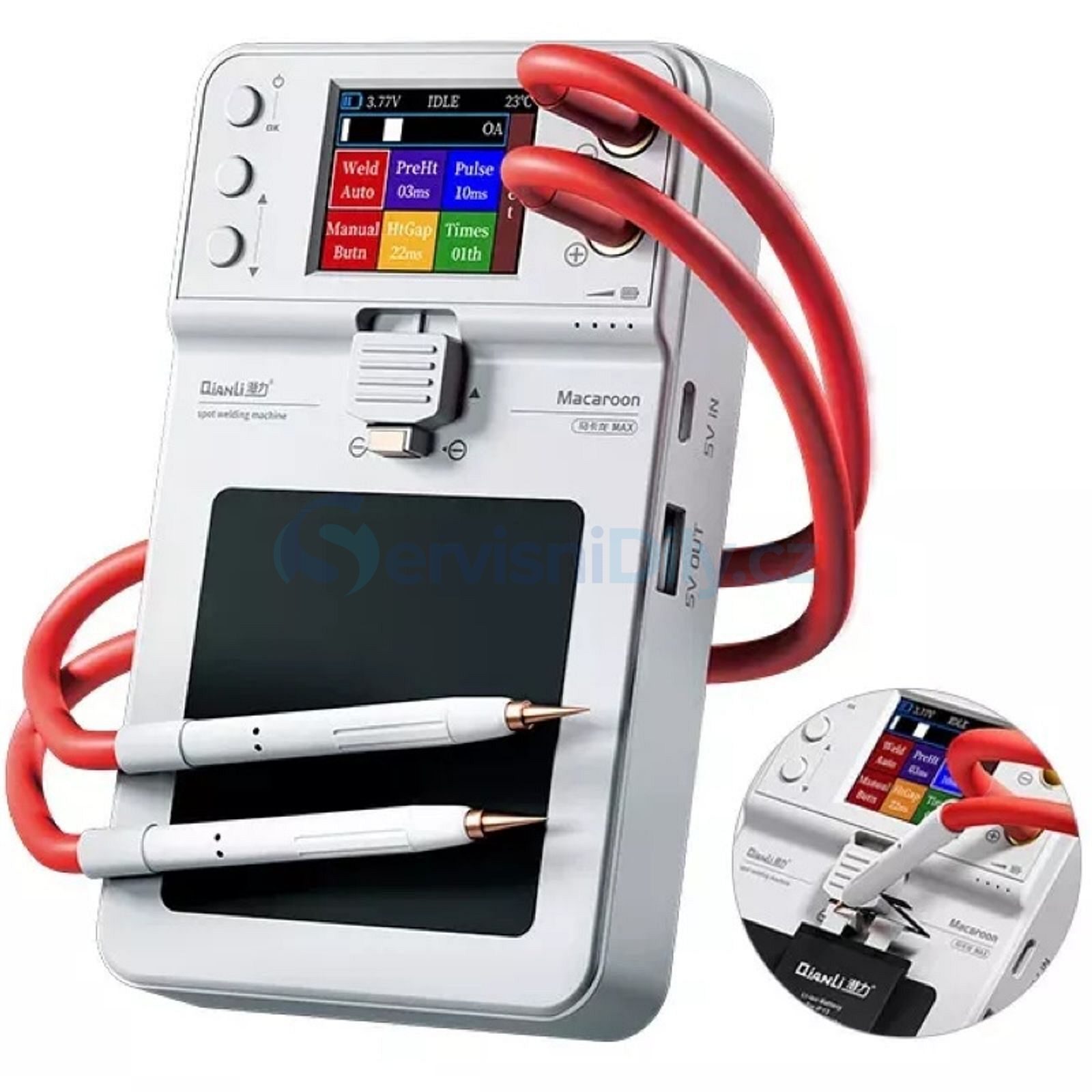

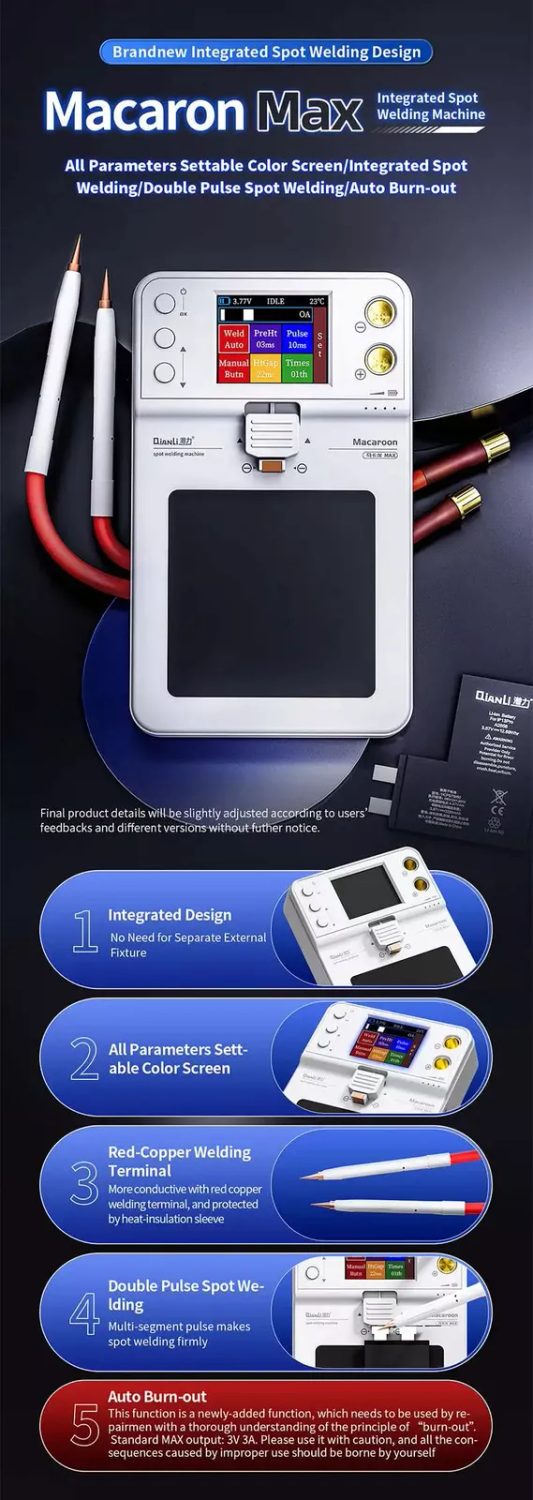

QianLi Macaron Max – Portable Battery Spot Welder with Advanced Features

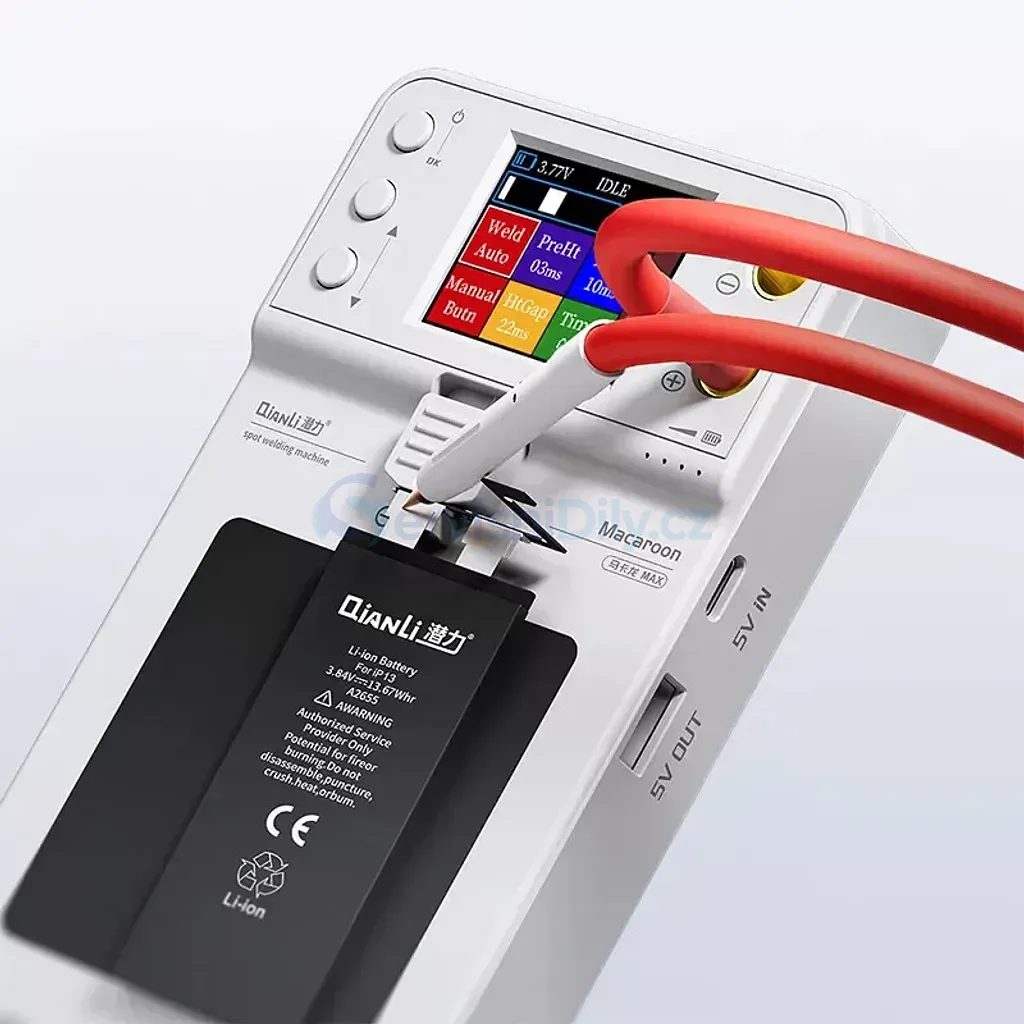

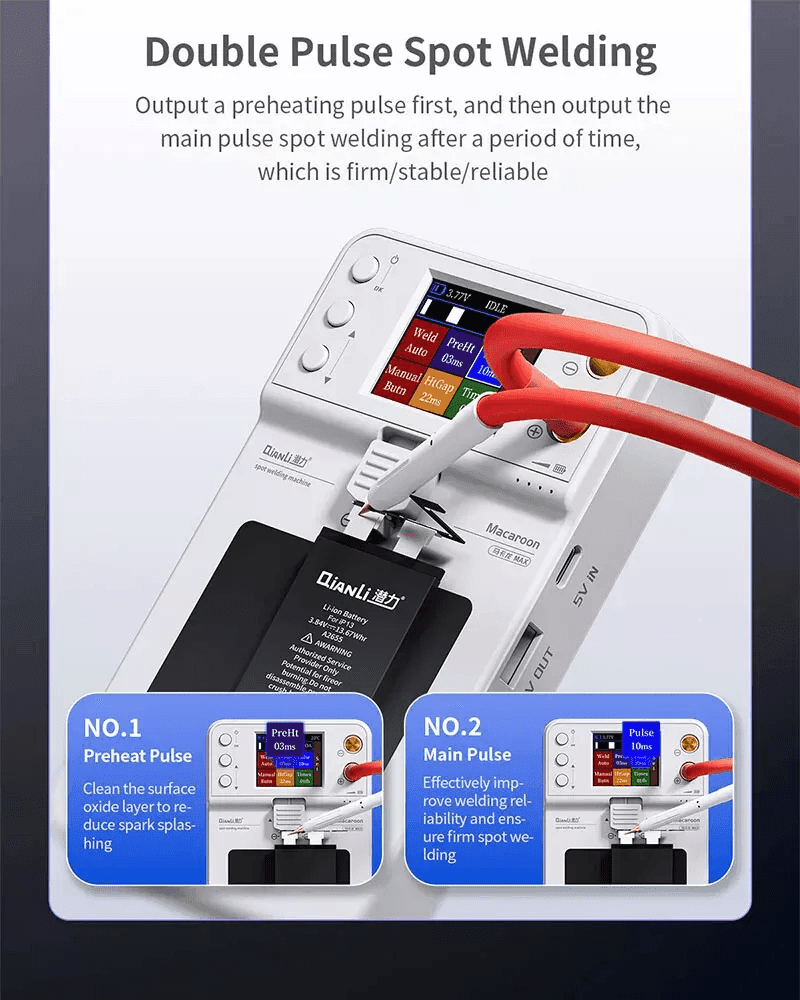

QianLi Macaron Max is a compact and high-performance spot welder designed for efficient battery and electronic device repairs, ideal for professional technicians and enthusiastic DIYers. With its precise dual-pulse welding system, it ensures strong and secure connections, which is crucial for repairing iPhone batteries or replacing battery management systems (BMS).

Main Features and Benefits:

• 6 Power Settings: Allows users to customize the welding strength according to specific needs and preferences.

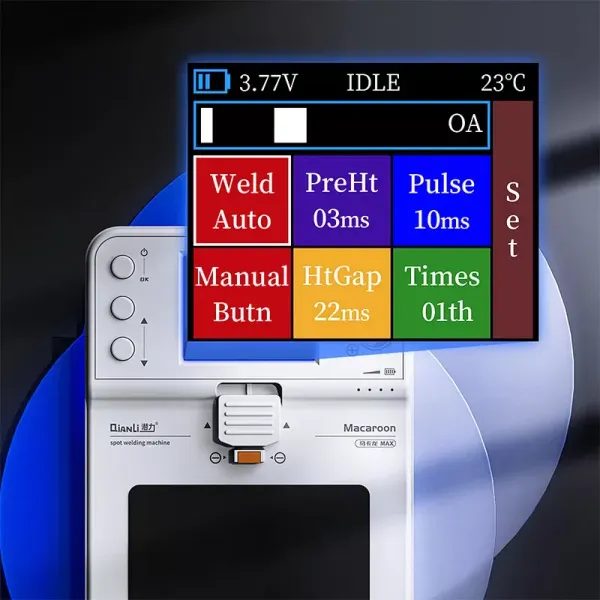

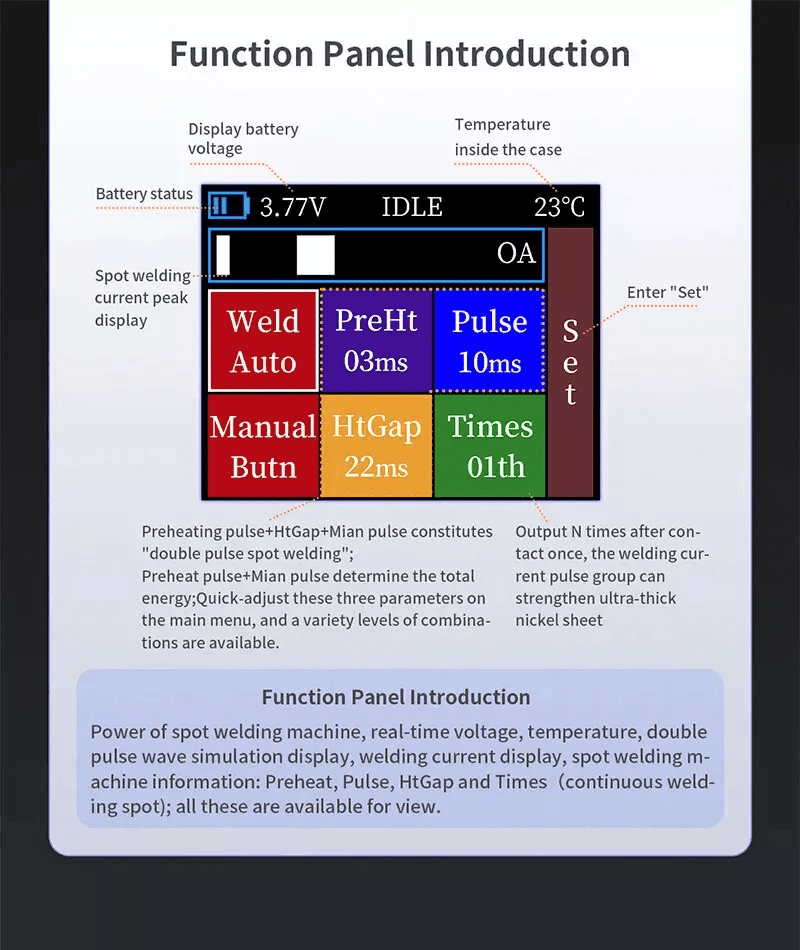

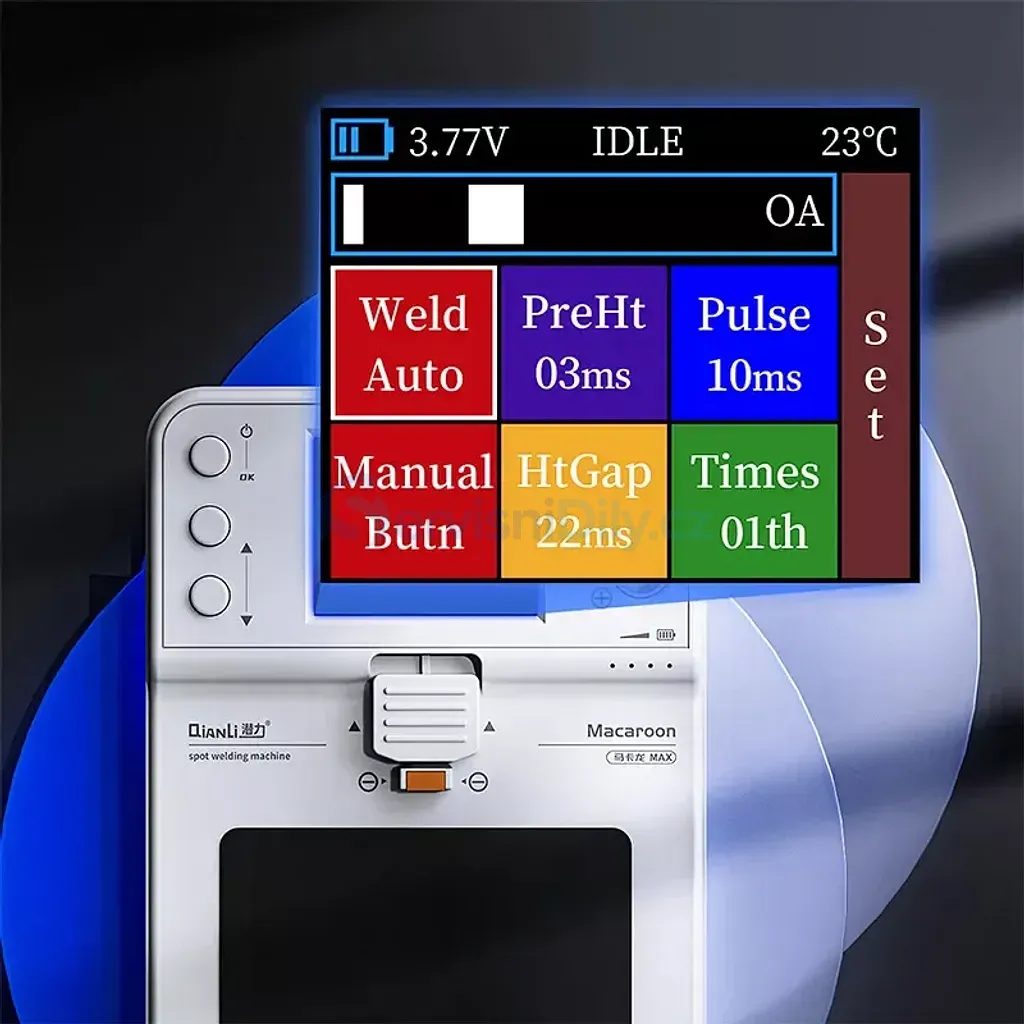

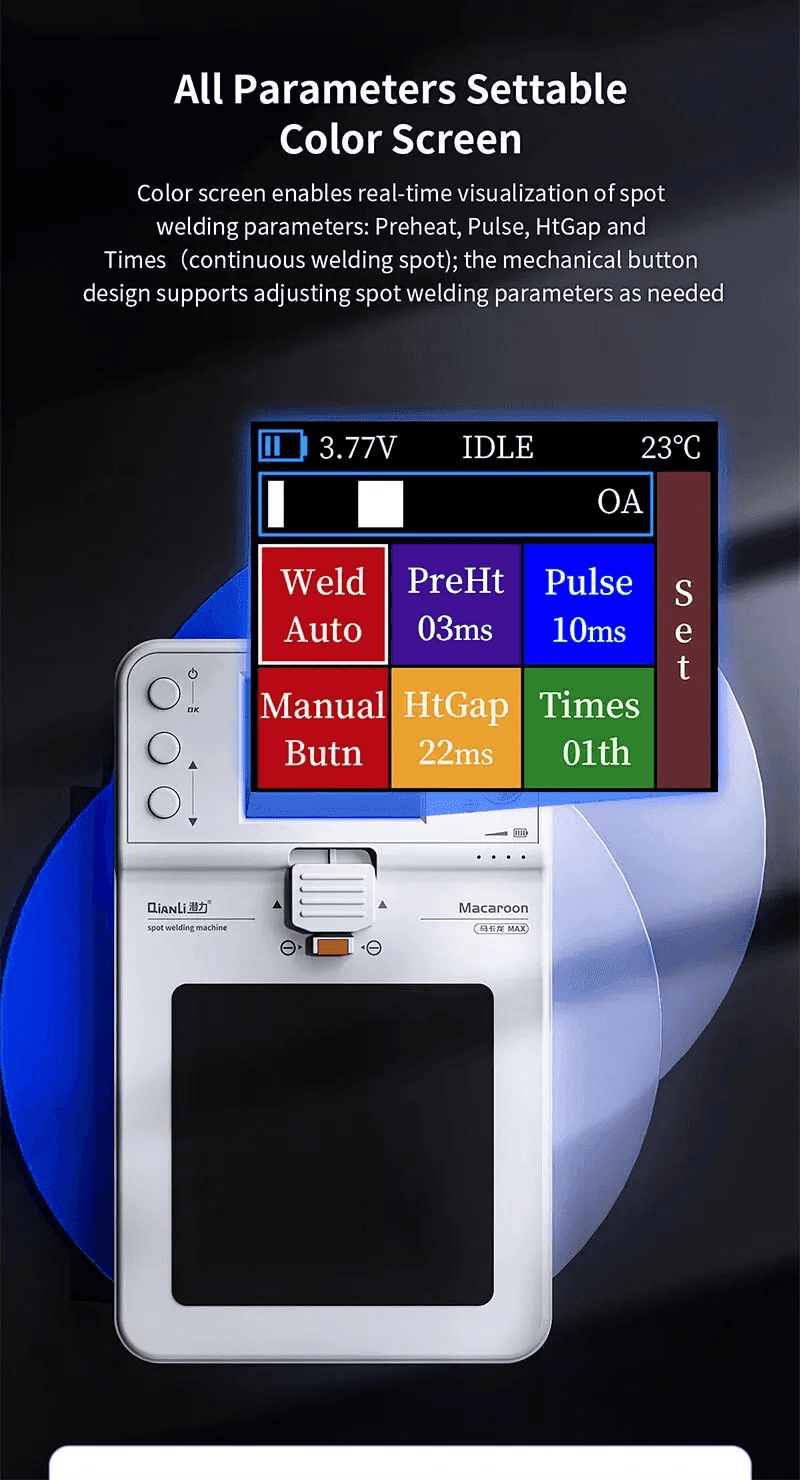

• Built-in Color Screen: Enables easy parameter settings directly on the device using an intuitive interface.

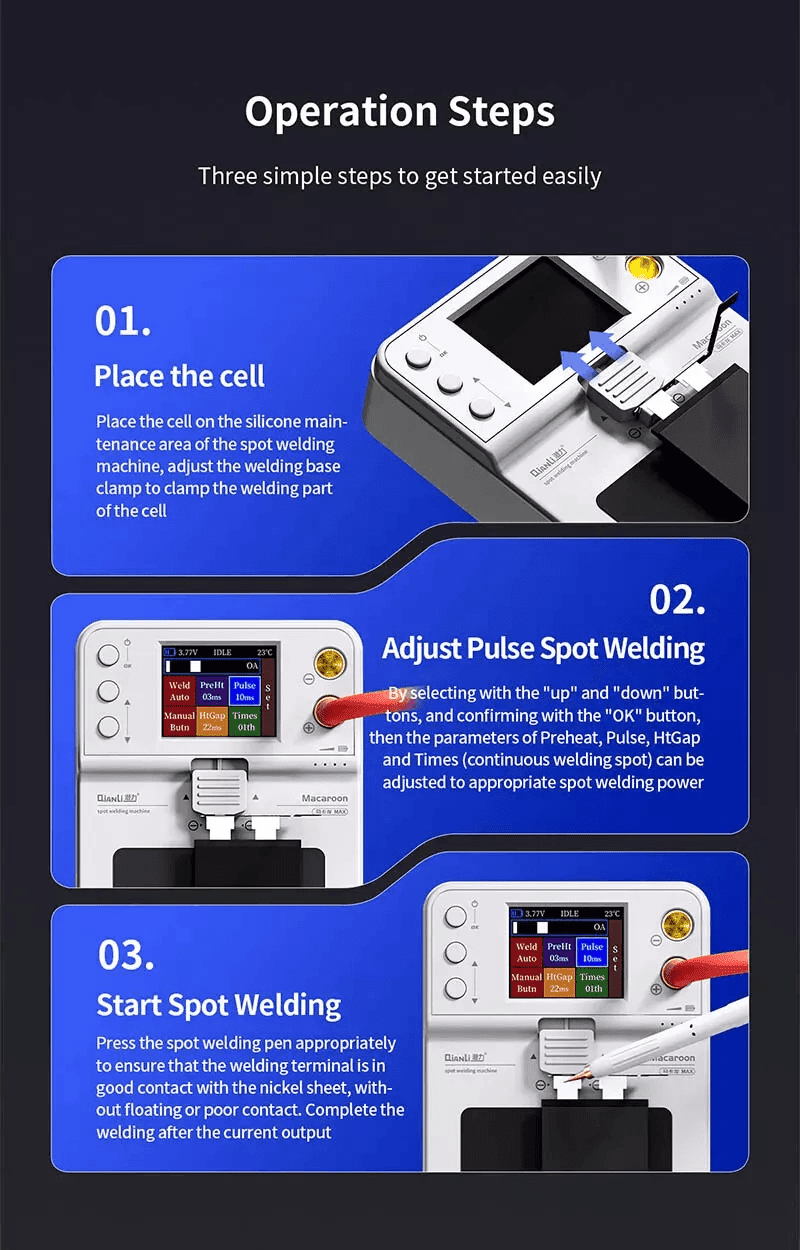

• Two Operating Modes:
  • Automatic Mode – The pulse is triggered when the device detects contact between both electrodes and the metal, speeding up and simplifying the work.
  • Manual Mode – The pulse is triggered manually with a button on the device, providing maximum control over the welding process.

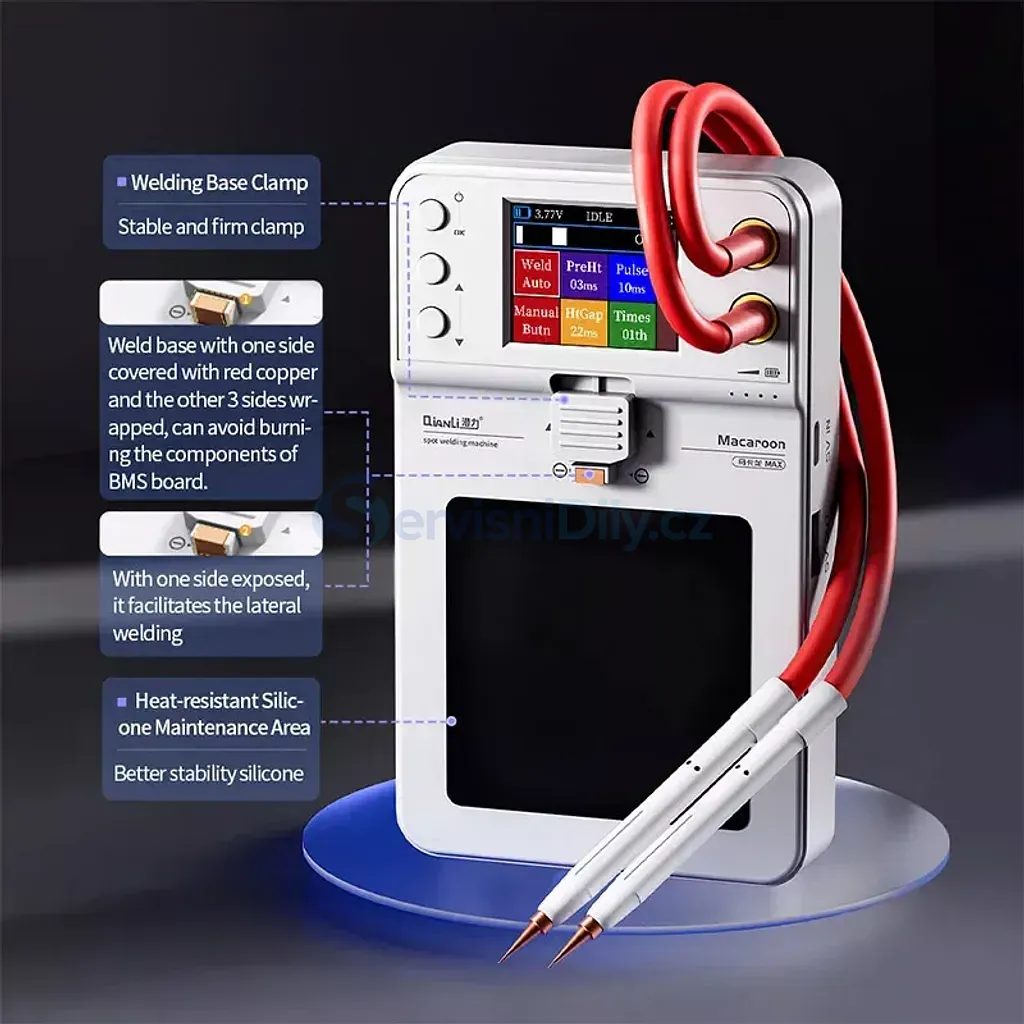

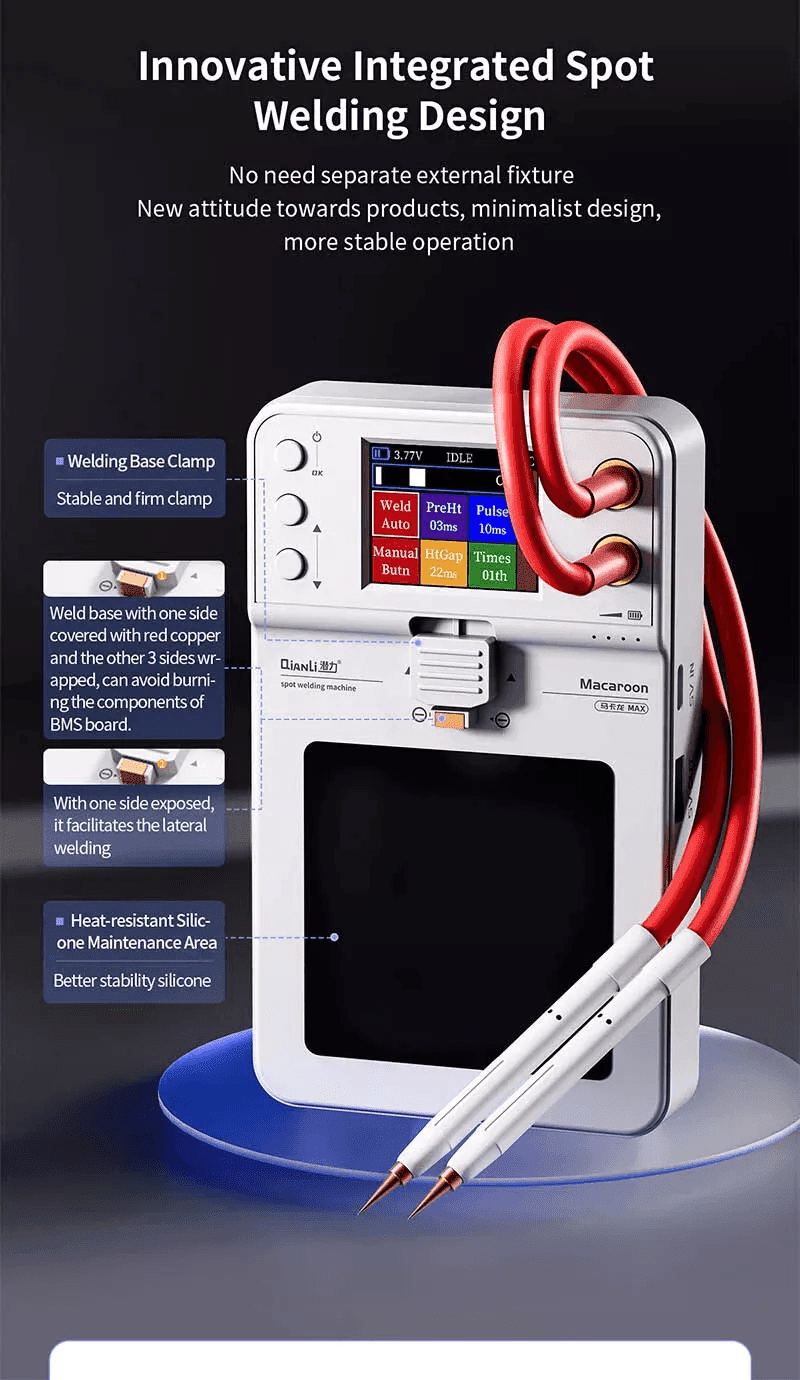

• BMS Positioning Holder: The package includes practical holders for securely placing BMS chips during iPhone battery repairs.
• Precise and Safe Welding System: Even and strong connections minimize the risk of battery damage, which is especially important when repairing sensitive devices.
• Low Operating Voltage: Ensures safety and reduces the risk of overheating or damaging the battery during welding.

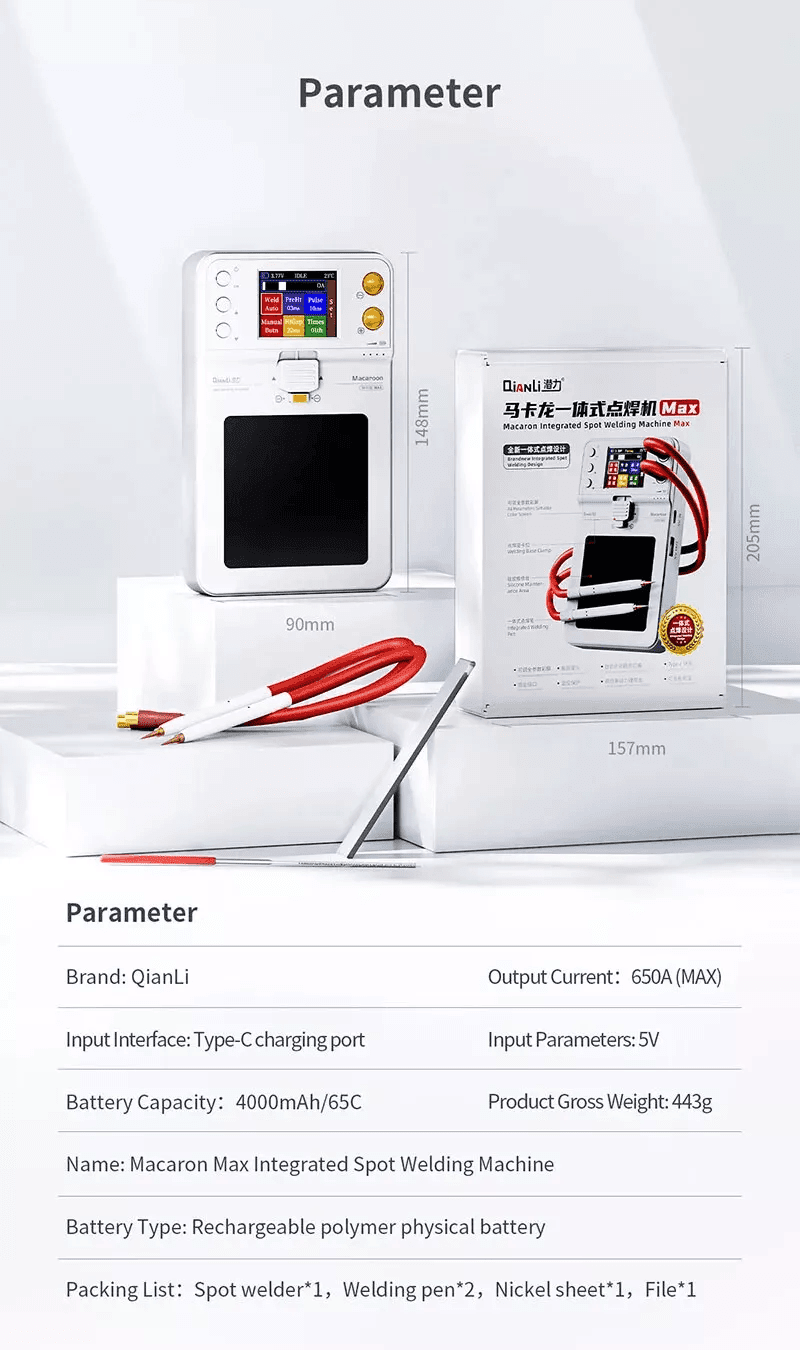

Specifications:

• Manufacturer: QianLi
• Model: Macaron Generation 3
• Type: Portable Welding Machine
• Output Voltage: 4.2V (MAX)
• Output Current: 650A (MAX)
• USB Output: 5V/2A
• USB C Charging Port: 5V/2A
• Recommended Nickel Thickness: 0.1 - 0.12mm
