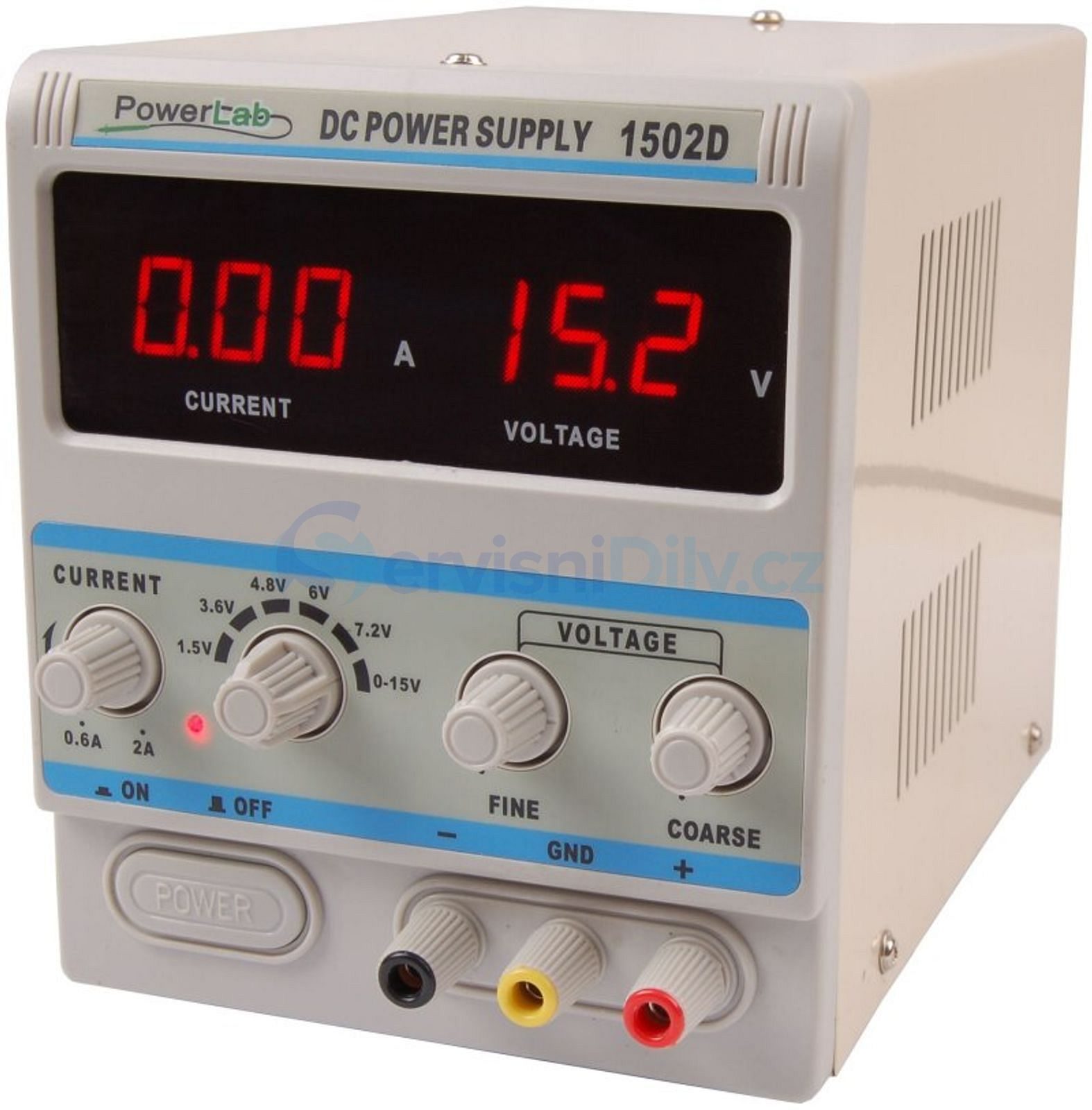

POWERLAB 1502D Power Supply 0-15V/0-2A with Smooth Regulation

• The PowerLab 1502D power supply operates within a voltage range of 0-15V DC
• Full current range of 0-2A
• Smooth regulation
• Five output voltage settings: 1.5 V, 3.6 V, 4.8 V, 6V, 7.2V.
• Operates in constant voltage (CV) mode or constant current (CC) mode, switching automatically.
• Ability to set current limiting anywhere within the operating range.
• Short circuit and overload protection

Specifications:

• Input voltage: 230 V AC +/- 10% 50 / 60Hz
• Display: 3 1/2 digits
• Indication accuracy: 1.0% + 1 digit
• Load regulation coefficient for voltage CV <0.01% + 2 mV
• Ripple level <1mVrms
• Standby time: 100VS
• Temperature coefficient <300ppm / ° C

Dimensions:

• Height: 150 mm
• Width: 127 mm
• Depth: 210 mm
• Weight: 1.6 kg

Certificates:

• Safety and EMC / CE marking /
• Subject to WEEE Directive 2002/96 / EC / Disposal /
